High-Performance Polycarbonate Roof Systems
Engineered to protect against severe weather while creating bright shade.
- 100% UV Protection
- Up to 83% Less Heat
- High-Impact Hail Protection
Polycarbonate Roofing
Smarter Than Traditional Roofing
Most roofing materials either block too much light, trap too much heat, or fail to provide lasting protection. Polycarbonate roof panels are designed to solve that problem by combining strength, light control, and weather resistance in one roofing material. Different panel options allow each roof system to balance heat reduction, daylight, privacy, and shade.
Aluminum + Polycarbonate
Engineered Shade Systems
Built on decades of Japanese aluminum exterior engineering, each shade system integrates polycarbonate roof panels into a structural aluminum frame. Panel holders secure the roofing within the frame, while added panel support reinforces it against strong winds. Integrated gutters manage rainwater and direct it away from the covered space. The completed shade system provides decades of coverage for vehicles and outdoor spaces.
Integrated Panel System
Polycarbonate roof panels are built into the aluminum frame as part of the shade system
Structural Aluminum Framing
Extruded T6 aluminum provides the support and stability behind the roof system
Heat Protection
Shade That Cuts The Heat
Heat protection gives polycarbonate roofing a real edge under the sun. Specially formulated polycarbonate panels reflect incoming sunlight and reduce the sun’s heat before it reaches the space below. For the strongest heat protection, Blue Smoke panels cut up to 83% of infrared heat rays. Other panel options offer different levels of heat reduction.
Up to 83% Less Heat
Blue Smoke panels cut up to 83% of infrared heat rays
Up to 38°F Cooler
Car interiors measured up to 38°F cooler than direct sun

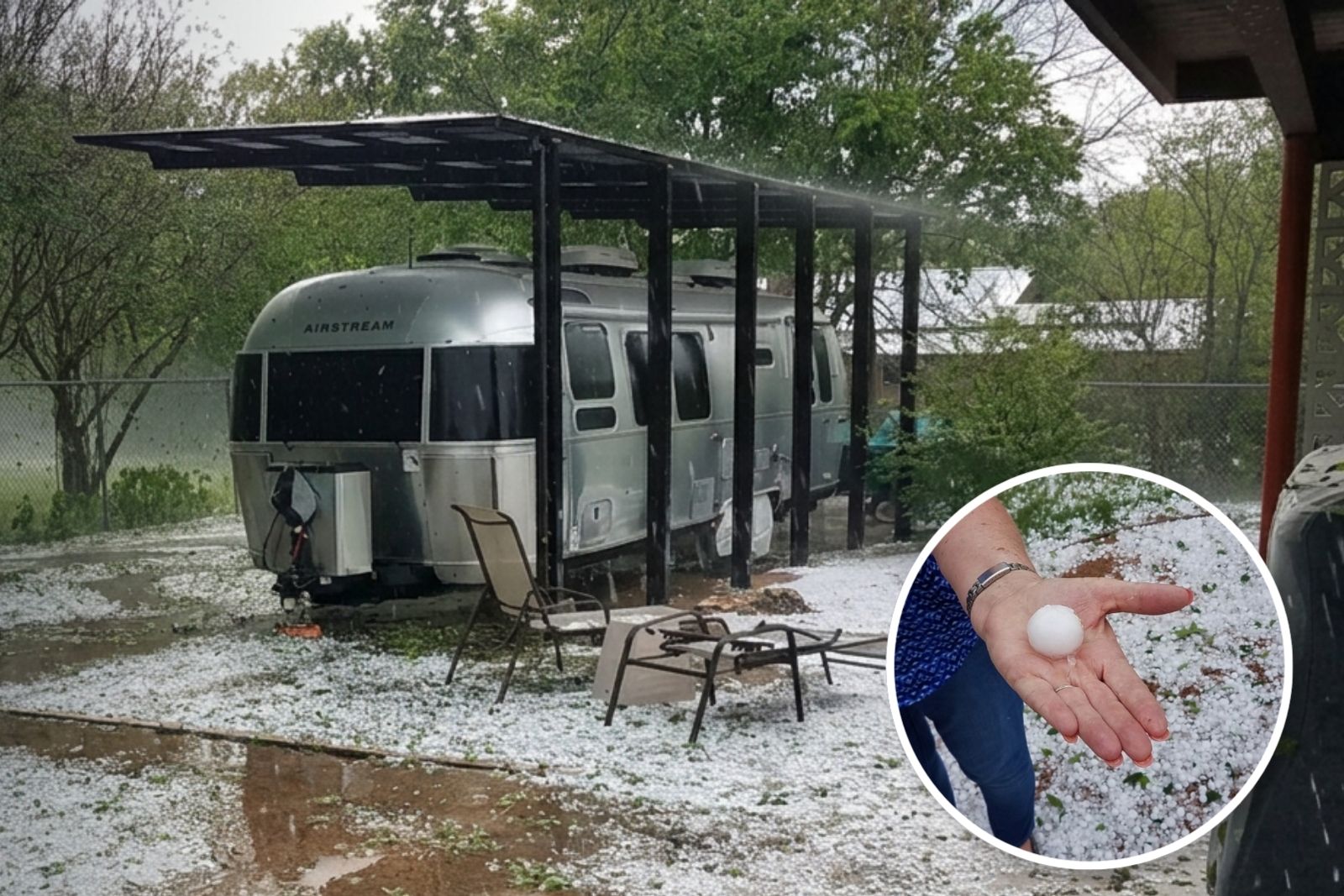

Hail Protection
Built to Take the Hit
Polycarbonate’s impact resistance is especially valuable when hail strikes. In Sankyo shade systems, the polycarbonate roof panels have about 250 times the impact resistance of glass. When hail hits, the panels flex and absorb the force of impact. They also resist becoming brittle in freezing temperatures, preserving their impact resistance through winter.
High Impact Resistance
Polycarbonate roof panels help absorb and disperse hail impact
Built for Severe Weather
Ready for hail, heat, high winds, and year-round exposure
Bright Shade
Shade That Lets Light In
Creating shade that cuts the sun’s heat without sacrificing natural daylight is the balance translucent heat protection polycarbonate was formulated to achieve. Blue Smoke panels transmit 11% of visible light for more subdued shade, while Frosted panels transmit 76% and diffuse daylight for a brighter space below. Both block 100% of harmful UV rays. The result is bright shade that feels open to daylight while offering real protection from the sun.
100% UV Protection
Blocks 100% of harmful UV rays beneath the roof
Bright Shade
Filters direct sunlight and heat while letting natural daylight through
Polycarbonate Panel Options
Choose Your Shade
Heat Protection
Blue Smoke
Blue Smoke delivers the strongest heat protection of the four options while still letting natural daylight through. The deep blue tint creates distinctly subdued shade.
83%
Infrared Heat Reduction
11%
Visible Light Transmission
100%
UV Protection
Heat Protection
Frosted Mist
Bright daylight meets strong heat protection. A frosted surface diffuses incoming light and softens the view through the roof, creating luminous shade with a more private feel.
70%
Infrared Heat Reduction
76%
Visible Light Transmission
100%
UV Protection
Opaque Shade
Matte Black
Full overhead shade with a bold matte finish. This opaque panel blocks visible light and hides roof debris from below, giving the underside a clean, ceiling-like appearance.
72%
Infrared Heat Reduction
0%
Visible Light Transmission
100%
UV Protection
Opaque Shade
Matte Silver
Full overhead shade with a lighter finish. The opaque silver underside reflects surrounding light for a brighter appearance below, while concealing leaves and debris on the roof.
81%
Infrared Heat Reduction
0%
Visible Light Transmission
100%
UV Protection
Panel appearance may vary with sunlight and viewing angle. Performance figures are based on Sankyo Tateyama’s published data.
Sankyo Tateyama
Every Patio Doctor shade system begins with Sankyo Tateyama, a Japanese manufacturer with more than 60 years of aluminum expertise in designing, engineering, and producing premium exterior building products.
Design Innovation
Continuously refined for strength, functionality and durability.
Precision Manufacturing
Advanced extrusion and processing deliver reliable, consistent quality.
Quality Assurance
Rigorous testing validates structural and weather performance.
Crafted in Japan.
Installed by Patio Doctor.
Available exclusively through Patio Doctor in North Texas, professionally installed and custom fit to your home.
Explore our shade systems for Carports, Patio Covers, Pool Shades, and RV Ports.
